Ballistic plates offer reliable protection in life-threatening situations. Placed in the front, back, or sides of vests, they safeguard vital areas and provide the confidence to tackle the toughest challenges.
Our plates combine durability with superior protection while maintaining a lightweight design for ease of use.

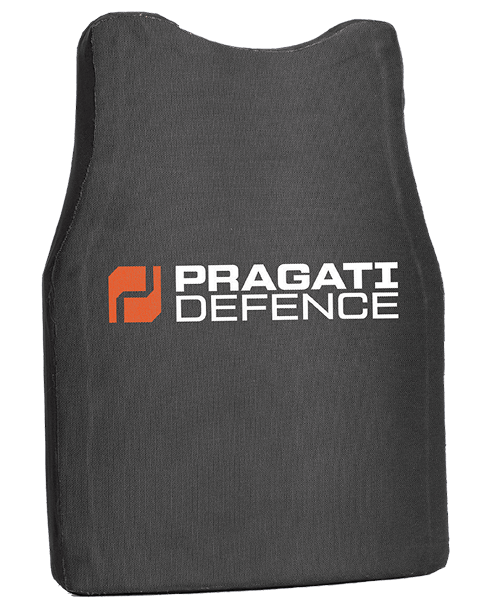

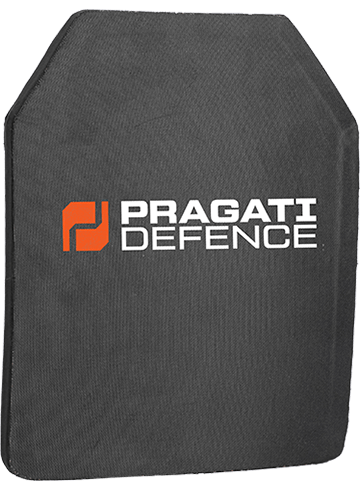

Max Guard
Armour Panels
Max Guard Armour Panels provide advanced rifle-resistant protection with an ergonomic design. Developed in collaboration with DRDO, these panels ensure superior safety and performance.
-
01 Enhanced Coverage And Ergonomic Design
Designed with an anatomically optimised curvature, these panels offer 930–1135 sq. cm of protection, providing 40% more coverage than standard SAPI plates
-
02 Edge-To-Edge Ceramic Coverage
A full-sized strike face with edge-to-edge ceramic protection exceeds Level IV standards and withstands up to six rounds of 7.62x54R API at 38 kg/m²
-
03 MINIMAL TRAUMA IMPACT
Made with Delta Three Oscar’s Ballistic™ grade materials, these panels minimise BFD for reduced trauma impact and enhanced operator safety
0101.0 Tested
Multi-hit Protection
RST Validated
Ultralight
TECHNICAL SPECIFICATIONS
| Protection | Weight (KG) | Configuration | Dimensions | Areal Density |
|---|---|---|---|---|
| NIJ 0101.06111+ AK 47 MSC, M80, M193 |
0.80 | ICW (Soft Armour IIIA Dependent) |
250x300 | 11 kg/m² |
| 1.00 | 14 kg/m² | |||
| 0.90 | Standalone | 250x300 | 13 kg/m² | |
| 110 | 15 kg/m² | |||
| 110 | 15 kg/m² | |||
| NIJ (0101.06) Level III+ +SS109/ M80 |
1.50 | ICW (Soft Armour IIIA Dependent) |
250x300 | 21.5 kg/m² |
| 1.70 | 24 kg/m² | |||
| 1.6 | Standalone | 250x300 | 23 kg/m² | |
| 1.90 | 27 kg/m² | |||
| AK47 API BZ | 210 | Standalone | 250x300 | 30 kg/m² |
| NIJ (0101.06) NIJ Level IV |
2.30 | ICW (Soft Armour IIIA Dependent) |
250x300 | 32 kg/m² |
| NIJ (0101.06) NIJ Level IV + B32 API |
2.40 | Standalone | 250x310 | 34 kg/m² |
| NIJ (0101.06) NIJ Level IV + B32 API |
2.690 | Standalone | 250x310 | 38 kg/m² |
| NIJ (0101.06) NIJ Level IV + B32 API + M993 Tungsten |
2.95 | Standalone | 250x310 | 42 kg/m² |

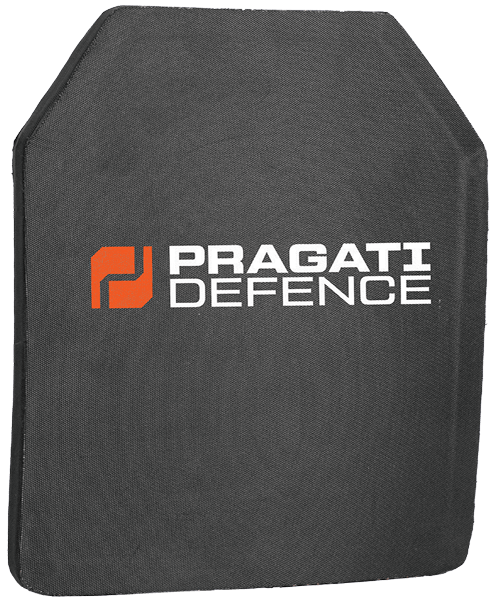

Viper
Viper is an Ultra-High-Molecular-Weight Polyethylene (UHMWPE) hard armour panel crafted for operatives who need protection without the weight.
-
01 Discreet, High-Performance Protection
Built for urban operations and covert missions, the panel delivers Level III rifle threat and AK47 MSC multi-shot protection
-
02 Lightweight Design
With a 15 mm profile and under 900 grams in weight, it provides exceptional protection without compromising mobility
-
03 Advanced Composite Technology
Built with proprietary composite curing and consolidation, the panel's 12 kg/m² areal density results in robust defence
-
04 Seamless Compatibility
It fits seamlessly into Ghost Plate Carriers, tactical vests, and compatible carriers, lending unmatched versatility
0101.0 Tested
Multi-hit Protection
RST Validated
Ultralight
Technical Specifications
| Protection | Weight (KG) | Configuration | Dimensions | Areal Density |
|---|---|---|---|---|
| NIJ 0101.06111+ AK 47 MSC, M80, M193 |
0.80 | ICW (Soft Armour IIIA Dependent) |
250x300 | 11 kg/m² |
| 1.00 | 14 kg/m² | |||
| 0.90 | Standalone | 250x300 | 13 kg/m² | |
| 110 | 15 kg/m² | |||
| 110 | 15 kg/m² | |||
| NIJ (0101.06) Level III+ +SS109/ M80 |
1.50 | ICW (Soft Armour IIIA Dependent) |
250x300 | 21.5 kg/m² |
| 1.70 | 24 kg/m² | |||
| 1.6 | Standalone | 250x300 | 23 kg/m² | |
| 1.90 | 27 kg/m² | |||
| AK47 API BZ | 210 | Standalone | 250x300 | 30 kg/m² |
| NIJ (0101.06) NIJ Level IV |
2.30 | ICW (Soft Armour IIIA Dependent) |
250x300 | 32 kg/m² |
| NIJ (0101.06) NIJ Level IV + B32 API |
2.40 | Standalone | 250x310 | 34 kg/m² |
| NIJ (0101.06) NIJ Level IV + B32 API |
2.690 | Standalone | 250x310 | 38 kg/m² |
| NIJ (0101.06) NIJ Level IV + B32 API + M993 Tungsten |
2.95 | Standalone | 250x310 | 42 kg/m² |
